PTO drive - easy laying of cables and pipes with the trench cutter GM 1 AS

The laying of cables and pipes plays an important role both in house building and in the agricultural use of land. Especially on very damp land, for example, it is important to lay drainage pipes to remove the existing moisture. Since such pipes are laid underground to protect them and prevent them from becoming an obstacle, trenches must first be cut. This is where many users opt for the reliable and powerful trench cutting machine GM 1 AS. It scores points with its easy handling and modern PTO drive.

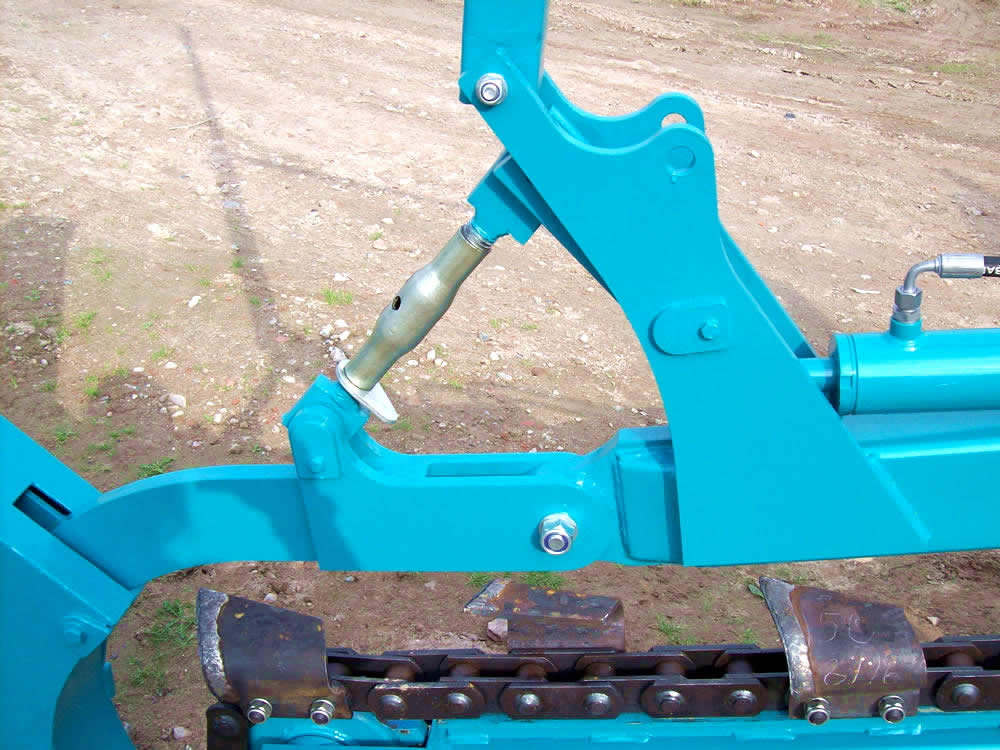

The GM 1 AS trench cutting machine with PTO drive at work

Basically, the trench cutting machine GM 1 AS only has to be mounted on a tractor and the work can begin. If the tractor is equipped with a three-point linkage at the rear, the trench digger can be mounted in a few easy steps. A major advantage is the low weight of the tiller. This ensures that even small tractors can work with the machine and thus dig trenches. The work of the tiller with PTO drive is particularly impressive due to its speed and precision. An excavator can also be used to dig trenches, but this takes longer and the resulting trenches are not nearly as clean and precise.

In this context the milling machine benefits from its two augers. These ensure that the excavated material is deposited on the left and right side of the trenches and does not slip back again. The machine achieves the high speed at work by means of a mechanical PTO drive. This delivers 540 rpm as standard, but models with 1,000 rpm are also available. In principle, the GM 1 AS trench digger has a net weight of 600 kg, but this weight can vary depending on the equipment used.

Important components and features of the trench cutting machine GM 1 AS

In addition to its PTO drive, the GM 1 AS trench cutting machine has numerous other characteristics and features to offer. Its versatility in use is particularly worth mentioning. For example, the tiller can work with a wide variety of digging trees with a cutter bar depth of 600, 850 or 1,200 millimetres. It is also possible to operate the tiller with different cutting blades between 70-300 millimetres. In this way, the trench cutting machine can be individually adapted to different working areas and is therefore suitable for a wide range of tasks and projects.

This high flexibility and individuality of the GM 1 AS trench cutting machine with PTO drive is also demonstrated by the various equipment variants available to the users. For example, a sole scraper with sole plate can be used. This is capable of adapting to the respective milling depth both mechanically and automatically. A manual or automatic laser system is also available and, on request, the milling machine can be equipped with a pipe-laying shaft with a holder for pipes.

The selection of the suitable trench cutting machine GM 1 AS

Many users choose an attachment trench cutting machine from Grabenmeister because they can rely on quality and durability. The machines are excellently manufactured and show very good performance even on difficult terrain. This saves time and effort when laying cables and pipes and is therefore very economical. Even long trenches can be excavated without great effort, equipped with the appropriate pipes and cables and then filled in again.

Another argument for such a trencher with PTO drive is the many years of experience of Grabenmeister. The milling machines of this company have already proven themselves in a large number of projects and always deliver excellent results. Specialists with a lot of know-how and experience are available for the selection and support interested parties in their search for the right trench cutting machine.



  • Prerequisite - carrier: tractor/Unimog hydrostatic or super creeper gear
  • Standard equipment: 2 screws
  • Milling beam depth: - 600, 850 and 1200 mm
  • Chain widths: - 70, 120, 150, 200, 250 and 300 mm (optionally in 44.45 or 75mm parts)
  • Carbon chisel chains
  • knife chains
  • Sole scraper with sole plate which mechanically/automatically adapts to the respective milling depth
  • 2 augers (excavated material is deposited on the side)
  • Laser system manual or automatic
  • Pipe laying shaft and holder for pipes

      • Drive: mech. via PTO shaft (540 rpm
        optional
        1000 rpm)
      • Weight: 600 kg
      • length: 3.100 mm
      • width: 1.300 mm
      • height: 1.500 mm

(Weight and dimensions depend
on the respective equipment)
