Reliability, protected technologies and an excellent procedure distinguish the Rock trencher. The trench cutting machine ensures uniform material comminution. Thanks to the trenchers, time-consuming post-crushing of broken rock and post-treatment of the surface are no longer required. Milling surfaces with the rock trencher GM 6 ASR is the more economical alternative to conventional blasting.

Rock trencher for hard surfaces

Our rock trencher is designed for the removal of rock of different strength levels. Powerful milling drums are used, which break out the rock more efficiently and with a unique milling depth. The result: coarser material and a lower proportion of fines.

With the trench cutting machine, the laying of cables can be carried out cost-effectively, quickly and in an environmentally friendly manner, even in heavy soils. The laser control system guarantees that the cables are laid on the prescribed gradient. The excavated trench is conveyed to the side of the milling machine or can be transported directly onto a vehicle. The trench cutting machine thus offers a new and efficient process for demanding tasks in surface excavation, surface preparation and surface design.

The advantages of the trench cutting service

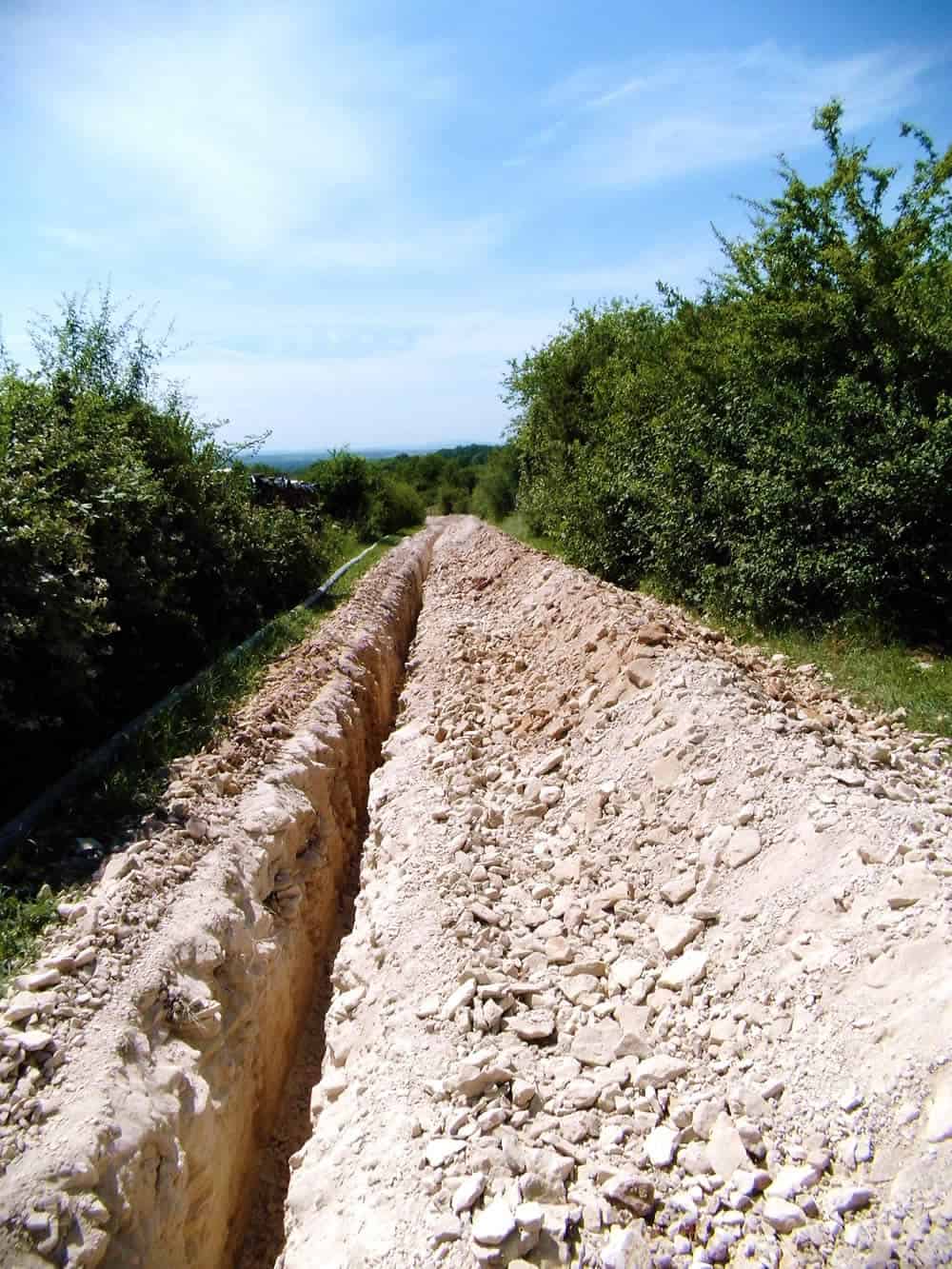

The Rock trencher cutting machine works in a soil class-independent process. Conveyed soil can also be re-installed when the rock is still standing. The soil is only disturbed in the trench area. In addition, the GM 6 ASR trench cutting machine ensures a faster excavation process than conventional methods. Time savings of up to 60 percent are possible compared to conventional construction methods. Our trench milling machine also makes it possible to create a trench with vertical walls.

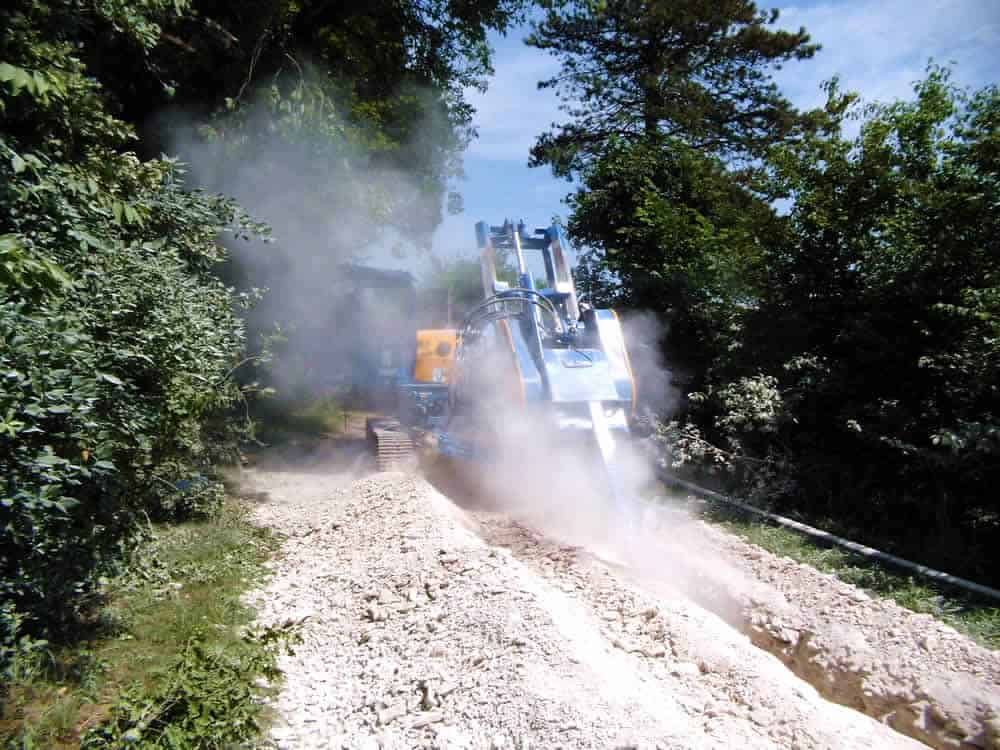

The rock trencher GM 6 ASR

With the rock trencher GM 6 ASR you work at the best angle for less wear. The GM 6 ASR convinces with track drive and turbo diesel. It is a versatile and powerful rock trencher with hydraulic boom. The boom can be moved laterally by up to 40 centimetres above the outer edge of the machine. The excavated material lands in the left-hand milling direction at the desired point via the hydraulic conveyor belt. With a supplementary conveyor belt, the excavated material can be loaded onto a truck in a single operation. This conveyor belt can easily be ordered separately.

The rock trencher GM 6 ASR is equipped with guide rollers which enable direct pipe and cable entry. The cab can be swivelled hydraulically. Thanks to the tilt device, lateral slopes of up to 12 degrees can be compensated hydraulically without any problems. Many years of experience in the field of rock milling have now been implemented with the trench cutting machine GM 6 ASR.

LIBA - Perfektion im Kabelbau Rohrleitungsbau Drainagen width=

  • Milling width: 120 -600 mm
  • Milling depth: 300 - 1,700 mm
  • Engine: Perlins, 6-cylinder turbo diesel, water cooled, 168 KW, 228 PS
  • Travel drive: Hydr. caterpillar drive
  • Working / transport speed: 0-8 km/h
  • Milling chain drive: hydraulic forward and reverse gear
  • Steering: hydr. via Lenpoti
  • Electrical system: 24V
  • Hydr. system: Tandem control pump Sauer, operating panel (control of all functions Proportional valves
  • Tyre running gear/crawler track: steel chain with 500 mm 3 web floor plates
  • Standard equipment: Standard conveyor belt hydr hydr. 15 degrees, trench edge scraper, all-wheel drive (stepless)
  • Milling beam depth: 1,500 mm
  • Chain widths: -120, 150, 200, 250, 300, 350, 400, 450, 500 and 600 mm (75 mm TLG.)
  • Carbon chisel chains
  • Mixed chains: (chisel and knife)
  • sole scraper
  • sole plate
  • backfilling auger
  • loading conveyor
  • Reel (drain pipes)
  • dozer blade
  • Laser system manual or automatic
  • cable drum holder
LIBA - Perfektion im Kabelbau Rohrleitungsbau Drainagen width=

  • Weight: 17.000 kg
  • length: 9.100 mm
  • width: 2.500 mm
  • height: 3.100 mm

(Weight and dimensions depend on the respective equipment)
