GM 140-AFH 600

The GM 140-AFH 600 (2 Milling bar) is a powerful, economical trencher specially designed for use on hydraulic excavators. This model is available with cutter bars of different lengths.

GM 6 ASR (Selfpropelled)

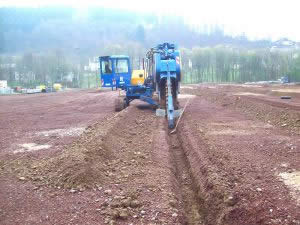

Work at the best angle for less wear. The GM 6 ASR with turbo diesel and track drive is a powerful and versatile trencher with hydraulic boom. The boom can be moved laterally up to 40 cm above the outer edge of the machine.

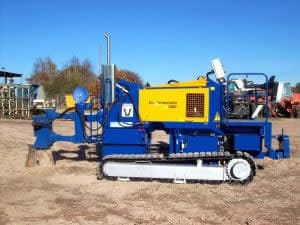

The GM 4 with crawler drive is ideal for working on impassable and stony ground, where the camber of the crawler track compensates for uneven ground. The GM 4 track is powered by a 4-cylinder diesel engine. It is optionally available with guide rollers for direct cable and pipe pulling.

GM 4 Raupe (Selfpropelled)
GM 140 AF (Trencher Attachment)

Strong and flexible. The GM 140 AF is a trench trencher attachment for mounting on tractors with three-point linkage at the rear. It is ideal for laying cables, pipes and drainage pipes. The trencher attachment can be equipped with different booms from 600 to 1,500 mm depth and milling blades from 70 to 400 mm width.

GM 1 AS (Trencher Attachment)

Economical and strong. The GM 1-AS is an attachment trench trencher attachment for mounting on tractors with three-point linkage at the rear. It is ideal for laying cables, pipes and drainage pipes. For optimum performance, the GM 1-AS can be equipped with booms (600-1200mm) and milling blades (70-300mm).

GM 4 Allrad (Selfpropelled)

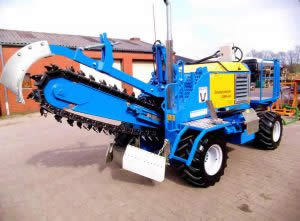

4-cylinder trencher for many applications. The GM 4 all-wheel drive has hydraulic valve control, which allows the operator platform to be positioned to the front left above the wheel (direct view into the trench). The machine can also be equipped with a backfilling hopper.

GM 1 Allrad (Selfpropelled)

The small but powerful GM1 all-wheel drive is designed as a self-propelled, diesel-powered trench cutting machine with a low deadweight for low soil loading. The tilt device offers the possibility of compensating lateral gradients of up to 15°. The operator platform can be swivelled.

GM 1800 P (Selfpropelled)

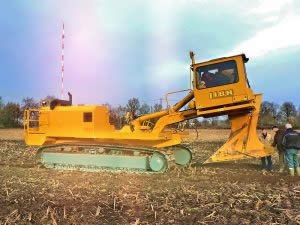

The GM 1800 P is a device that meets the highest demands in the execution of drainage work and in the digging of trenches for cable lines as well as for gas and water pipes. The GM 1800 P has an engine power of approx. 400 HP and runs on crawler tracks with fully hydrostatic travel drive.

GM140 AFH-600 (Trencher Attachment)

Grabenmeister GM 140 AFH-600 is equipped with a hydraulic slewing ring and thus enables milling laterally offset to the excavator. A big advantage of this new excavator mounted trench trencher attachment is the equipment with a conveyor belt, which can be inserted on both sides of the trencher attachment (left or right as required).

GMV 130 Plough (Trencher Attachment)

The "GMV 130" plough was designed for tractors and hydraulic excavators. As attachment to 3-point tractors with stepless transmission or super creeper gear from 150 HP as well as to hydraulic excavators from 20 tons. The maximum operating depth is 1,300 mm and pipes or cables up to a maximum diameter of 80 mm can be drawn in at the same time.

GM 140 H (Trencher Attachment)

The GM 140 H (1 cutter bar) is a powerful, economical trencher specially designed for use on hydraulic excavators. Mounted on an excavator arm, it offers the advantage of reaching a large field of action and being able to work over obstacles.

GM 160 AS (Trencher Attachment)

The GM 160 AS is a trencher with 2 augers for mounting on tractors with three-point linkage at the rear. It is ideal for laying cables, pipes and drainage pipes. The cutter bar can be moved mechanically or hydraulically up to 600 mm to the side. The trencher attachment can be equipped with various booms from 1,250 to 1,600 mm deep and milling blades from 150 to 450 mm wide.

GM 160 AF (Trencher Attachment)

The GM 160 AF is an attachment trenchers with conveyor belt for mounting on tractors with three-point linkage at the rear. It is ideal for laying cables, pipes and drainage pipes. The cutter bar can be moved mechanically or hydraulically up to 600 mm to the side. The trencher attachment can be equipped with various booms from 1,250 to 1,600 mm deep and milling blades from 150 to 450 mm wide.

GM 1-AF (Trencher Attachment)

The GM 1-AF is an attachment trencher for mounting on tractors with three-point linkage at the rear. It is ideal for laying cables, pipes and drainage pipes. The low weight of the trencher attachment is particularly advantageous, so that it can also be operated on very small tractors.

previous arrow
next arrow
Slider

Since 1964 the label GRABENMEISTER stands for technically fastidious trenchers which are sold world-wide. Our experience of many years is your guarantor for know-how, service and reliable machines.

Our products

All
Selfpropelled-trenchers
Special-machines
Trencher-attachment
GM 1 4WD
Grabenfräse GM 1-AF
GM 1-AF
GM 140 AF
GM 140-AFH - 500
GM 140-AFH - 600
GM 140-H
GM 160 S or AF
GM 1800 P grave master drain
GM 300-H
GM-1AS
Grabenfräse GM4 zur Verlegung einer Drainage im Sportplatzbau
GM4 4WD
GM4 Crawler
GM6 ASR
GMV 130 Plough

You get from us .....

  • Self-propelled trenchers
  • Mounted trenchers (tractor)
  • Self-propelled drain ploughs
  • Hydraulic excavator attachments
  • Vibration plough attachment
  • filling hopper
  • backfilling screws
  • dozer blades
  • installation accessories
  • Carbon chisel and holder
  • knife chains
  • Standard chisel chains
  • Carbon chisel chains
  • mixing chains
  • conveyor belts
  • sole scraper
  • sprockets
  • encampments
  • hydraulic components

And should you ever need an "exotic part", we are sure to find a solution!
